BUY NONLINEAR OPTICAL CRYSTALS





GAMDAN OPTICS is the best name in USA Nonlinear crystals. No matter the various orientation and dimensions we have the nonlinear optical crystals for your needs, all shipped from our US Silicon Valley facility. If you need samples to try out your design, please contact us for in-stock items, the fastest delivery, and most favorable pricing.

MORE ABOUT OUR PRODUCTS:




Beta Barium Borate BBO Non Linear Crystal Manufactured in the USA

Potassium Titanyl Phosphate KTP Crystal Manufactured in the USA

Neodymium Doped Yttrium ND:YVO4 Crystal USA

LBO Nonlinear Crystals

Lithium Tri-borate (LiB3O5)

An exceptional high laser damage threshold and excellent physical properties make LBO an ideal candidate for high power green-blue UV conversion of solid state and fiber lasers. As laser pulses shorten and average power continues to increase, the surfaces of the LBO crystal often see the highest power density.  Surface damages and the resulting loss of output power and the distortion of the beam caused by localized absorption resulting in thermal instability are some of the major issues in high power applications.

Small traces of contaminants during the growth and fabrication process can lead to these major breakdown issues, especially in the UV.  Our bulk super low absorption crystal, combined with our proprietary UV-grade super polish process is critical for highest damage threshold and stability in long term operations.

CALIBRATED ABSORPTION <10 PPM/CM

Exceptionally low calibrated IR absorption (<10ppm/cm) as measured by PCI (Photo-thermal Common-Path Interferometry). (*UV absorption analysis is available upon request)

Buy nonlinear optical crystals with these attributes:

  • Highest surface quality (S/D of 0/0, <5A roughness

  • Dimensions up to 100 x 100mm (depending on thickness) x 100mm (depending on aperture)

  • 3-5x less absorption than competition with high uniformity

  • Multiple UV lifetime test in nanosecond, picosecond, and femtosecond systems with superior performance.

BBO Crystals

Beta Barium Borate (β-BaB2O4)

BBO is a versatile nonlinear optical crystal with a combination of a number of unique features: wide transparency region, broad phase-matching range, large nonlinear coefficient and high damage threshold.

BBO is one of the few practical crystals for use below 500 nm in Second Harmonic Generation (SHG) and Sum Frequency Mixing (SFM). BBO can be uses with CW light, nanosecond pulses or ultra fast pulses. It can produce output SHG for SFM light in the ultraviolet down to 190nm.

For OPO, SHG, FHG, SFG, large dimension for OPO, UV grade for deep UV with AR coatings:

  • Absorption <10ppm/cm tested at 1064nm and 532nm

  • Absorption <3500ppm/cm tested at 266nm

  • Completely free of visible defects

  • BBO OPO material: Large dimensions, with superior uniformity (λ/10)

  • Excellent conversion efficiency

KTP Crystals

Potassium Titanyl Phosphate (KTiOPO4)

Our Potassium Titanyl Phosphate crystals (KTP) are among the most widely used nonlinear optical crystals in many optical systems. GAMDAN Optics offers GTR-KTP (gray tracking resistant) crystals that are hydrothermally grown.

  • 300 ppm/cm absorption @532 nm with excellent uniformity

  • UV grade super polish for optimal high-power performance, Roughness: <5A, S/D of 0-0

  • Excellent homogeneity, WFD of λ/10 @633nm

  • Best performing KTP material available on the market

  • Highest LiDT both in bulk and coated surfaces

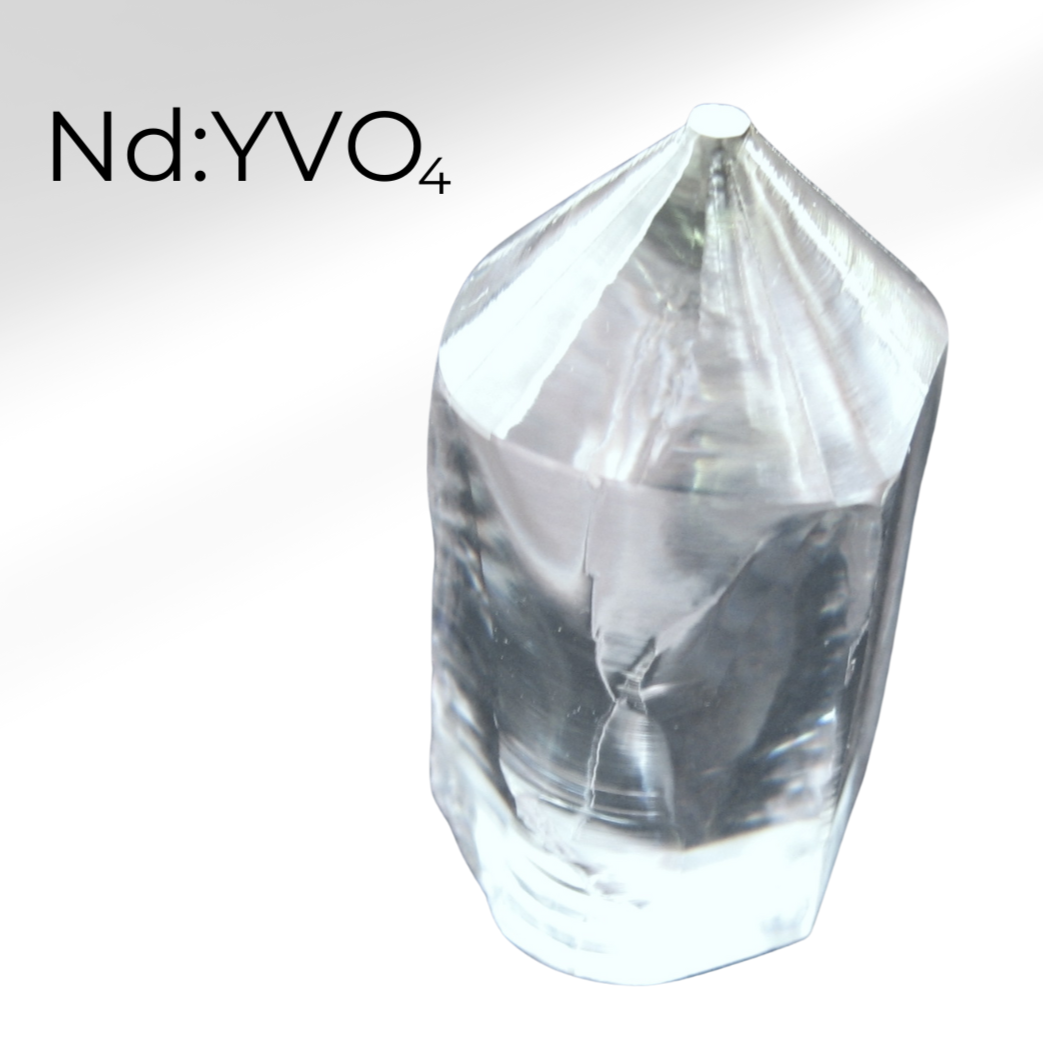

Nd:YVO4

Neodymium Doped Yttrium

The exceptional optical properties of our Nd:YVO4 crystals makes it the best material that can cater to a broad array of laser applications including light displays, medical diagnostics, spectroscopy, laser printing, and many more.

  • Low absorption

  • Strict dopant concentration uniformity control

  • Custom growth for intra-cavity generation of IR

  • Custom rare-earth doped growth available upon request



TYPICAL COATING SPECS

Gamdan Optics provides custom designed coatings to meet your application needs with the highest UV LiDT guaranteed!  Data available upon request. (Email Us to request the data)

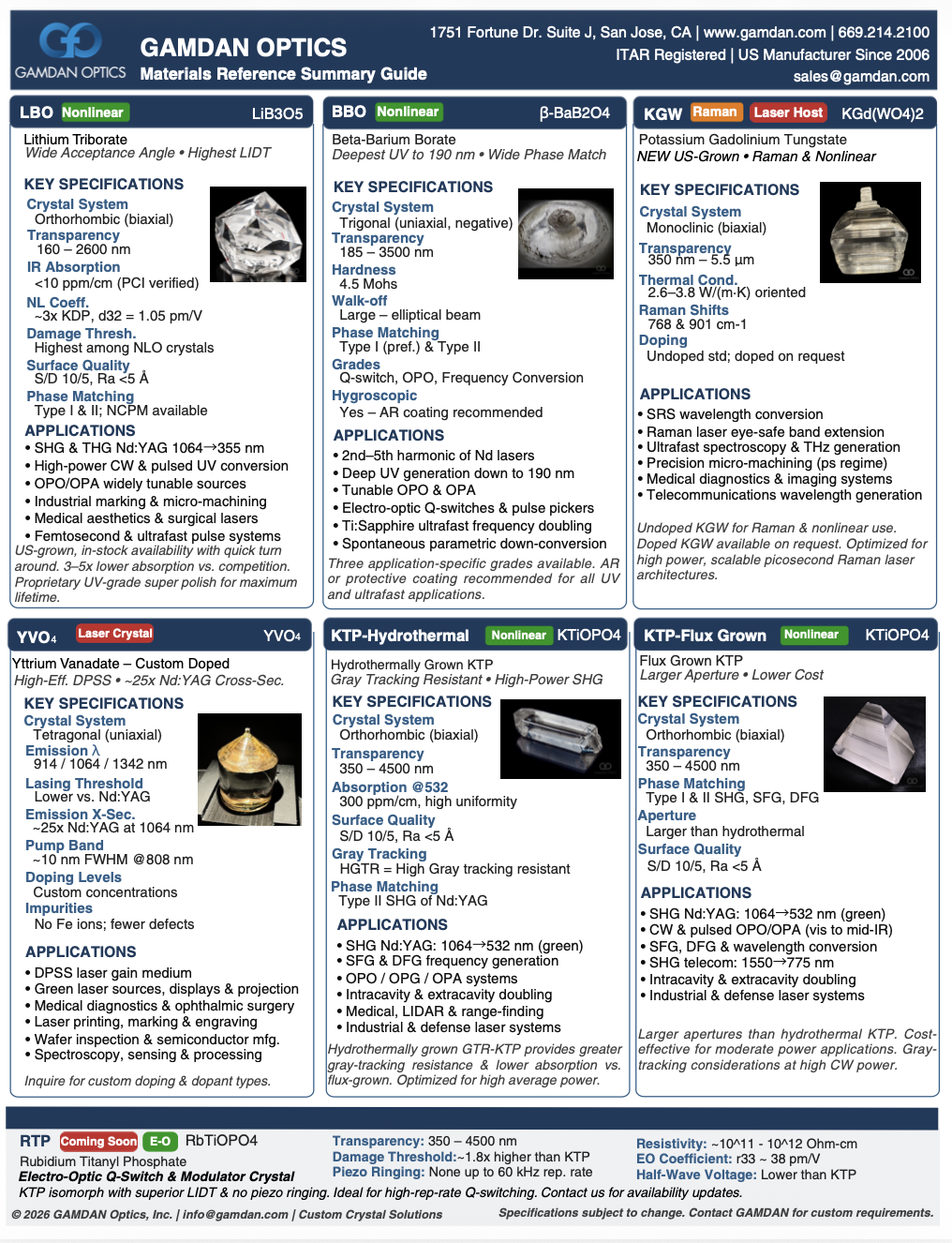

FABRICATION SPECS

Why Buy Nonlinear Optical Crystals from Gamdan Optics?

Our nonlinear optical crystals available for purchase are of the highest quality. Created with extraordinary characteristics, our process makes them highly suitable for a wide range of OEM (Original Equipment Manufacturer) and other applications. High damage threshold, low absorption, entirely devoid of visible defects, excellent conversion efficiency, superior uniformity, and other traits make them reliable for diverse uses.

No matter how demanding your application, or what type of nonlinear optical crystals you’re looking to purchase, you can rely on our high-quality crystals that come with the highest life expectancy and stability. Moreover, if you have unique manufacturing applications, Gamdan Optics provides custom manufactured nonlinear optical crystals tailored to meet your specific requirements.

As a veteran crystal grower, our founder Dr. Sitai Lin had the experience and expertise to build Gamdan Optics from the ground up. We focus primarily on growing our nonlinear crystals and fabricate all of our materials in-house. Our LBO, KTP, Nd:YVO4, and BBO crystals are able to meet the most stringent quality criteria year after year. Equipped with UV-grade super polished surfaces and high damage threshold coatings, our crystals can help you achieve your goals, be it in medical, research and development, laser, defense, or any other sector.

To buy nonlinear optical crystals or get additional information, contact us today. We look forward to hearing from you.
